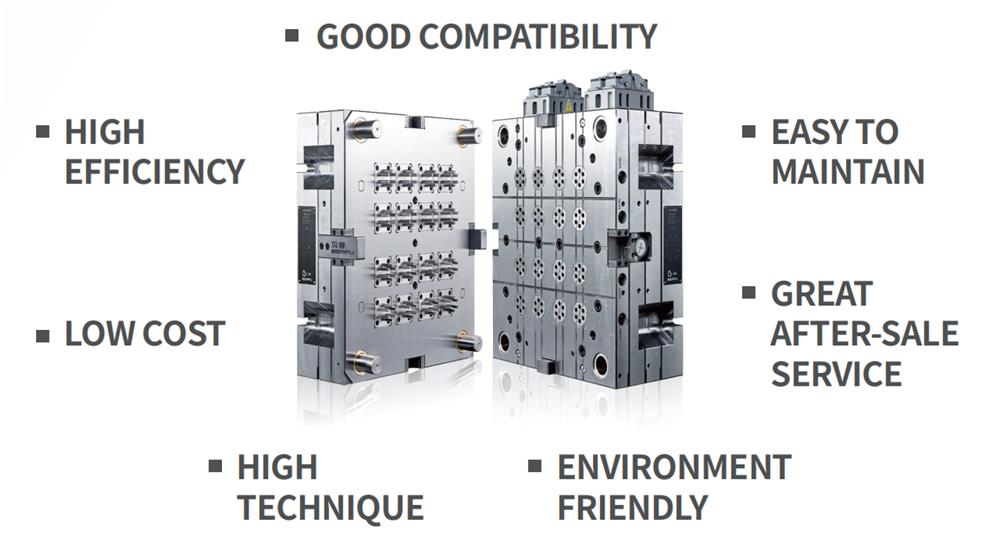

Using imported equipments to improve the precision of mold part.
Special self-lubricating accessories for visualization of mold accuracy reduction.
Optimized structure and smaller size for smaller injection molding machine.
The consistency of accessories allows mutual matching, wearing parts replacement and hot nozzle cleaning directly on the injection molding machine.
Free of degraded materials and dust, more eco-friendly.
The mold base and mold core are made of stainless steel.
Compared with cold running mold, a 180% increase on output.(Based on the annual output of 550 million cold and hot running molds for 55 long protective caps.)
Syringe barrel/plunger size and cycle | ||||||
| Name | Model | Cavity qty | Molding cycle | Mold size | Tonnage | Roof height |
| Barrel | 1ML | 48 | 12-15S | 850*750*575 | 280(350) | 3.8M |
| 2ML | 48 | 10-12S | 650*550*500 | 230 | 3.4M | |
| 3ML | 48 | 11-13S | 650*550*530 | 180 | 3.4M | |
| 5ML | 48 | 11-13S | 650*550*500 | 180 | 3.4M | |
| 10ML | 48 | 10-12S | 700*600*540 | 280 | 3.5M | |
| 20ML | 48 | 12-15S | 800*650*670 | 280 | 3.6M | |
| Plunger | 1ML | 64 | 12-15S | 750*400*495 | 180 | 3.3M |
| 2ML | 64 | 10-12S | 750*400*495 | 230 | 3.4M | |
| 3ML | 32 | 11-13S | 450*400*465 | 180 | 3M | |
| 5ML | 32 | 11-13S | 520*400*480 | 180 | 3M | |
| 10ML | 48 | 10-12S | 750*400*495 | 280 | 3.6M | |
| 20ML | 32 | 12-15S | 600*450*510 | 280 | 3.5M | |
* Para meters according to customer requirements (Cycle data according to customer drawing)
Syringe barrel/plunger size and cycle | ||||||
| Name | Model | Cavity qty | Molding cycle | Mold size | Tonnage | Roof height |
| Hub | 128 | 10-12S | 600*530*393 | 150T | 3.1M | |
| Cap | 34# | 128 | 6-8S | 550*450*440 | 150T | 3M |
| 43# | 128 | 6-8S | 550*450*440 | 150T | 3M | |
| 50# | 128 | 6-8S | 550*450*440 | 150T | 3M | |
| 55# | 128 | 6-8S | 550*450*440 | 150T | 3M | |
| Blood collection needle hub | Semi- hot | 40 | 15-18S | 375*320*395 | 100T | 2.9M |
| Blood collection needle lower cap | 96 | 8-10S | 600*530*435 | 150T | 3.1M | |
* Para meters according to customer requirements (Cycle data according to customer drawing)
